High power DC charging

Full-range solutions for your charging network

Talk to an expert

Power up your charging operations

Serving all types of vehicles and charging needs, our Harmony fast DC chargers guarantee smooth backend compatibility, an intuitive user experience, and simple integration with your existing business operations.

Modern

Visually attractive and functionally capable. Ready to satisfy modern charging needs

Modular

DC output ratings available from 60-400 kW for effortless expandability

Flexible

Compatible with multiple output connectors:  CCS, CHAdeMO, and GBT options.

Harmony Direct
Harmony Wall
Harmony Bharat
Spin Pro
Harmony Direct
Charge up to 900km/h
Max power = 400kw
Commercial DC
Calculations are appromixations based on the average consumption per 100km. Actual consumption depends on the vehicle, battery size, and driving conditions.
1-hour charge = 960 km*
Max power = 240kw
Commercial DC
Harmony Direct is available in four configurations:
60-120 kW
120 - 180 kW
160 - 240 kW
240 - 400 kW

Perfect DC EV chargers for in-city, highways or heavy duty fleets

Transform your electric vehicle charging experience with these compact and versatile EV chargers

Range of connector options and power outputs from 60kW to 400kW
A choice of charging outlets capable of delivering up to 1000 V, 400 A from a single charge point
Built in safety and vehicle compatibility
Designed for effortless deployment and a simplified charging experience
Talk to an expert
Download brochure
Key features
Operable in extreme high temperatures without power derating
Intuitive user experience and multiple authentication methods
Cable management retractor and integrated area lighting
Easy transportation and installation
Scalable charging power in 30kW or 40 kW increments
Customizable corporate branding
Stainless Steel structure option
10" capacitive touch screen user interface
Dedicated energy meters for each output (EN 50470 compliant option)
IP54 rated water resistant
Smooth payment and authentication
Key technical specifications
Charger output
Charging mode
4
Output voltage
200 - 1,000 Vdc
Outlet 1: CCS / GBT
Outlet2: CCS / GBT / CHA
60-120 kW: up to 250 A per outlet
120-180 kW: up to 400 A per outlet
160-240 kW: up to 400 A per outlet
240-400 kW: up to 400 A per outlet
Mains input
Input supply (nominal)
380/400/415 Vac 50/60 Hz
AC current, Power rating
93 A, 65 kVA for 60 kW
140 A, 97 kVA for 90 kW
186 A, 129 kVA for 120 kW
235 A, 161 kVA for 150 kW
248 A, 172 kVA for 160 kW
280 A, 194 kVA for 180 kW
310 A, 215 kVA for 200 kW
372 A, 258 kVA for 240 kW
496 A, 344 kVA for 320 kW
620 A, 430 kVA for 400 kW
Protection & safety
Surge, Over current, Under/Over voltage, Over temperature, Residual current
User interface & comms
Display
10” capacitive touch screen TFT LCD
User authentication by RFID / mobile app / OTP / QR code
Energy meter per DC outlet
EN50470 compliant option
Network connectivity
Ethernet / 4G (option)
Communication protocol - OCPP v1.6j (JSON)
Mechanical
Dimension (H*W*D)
1,850 * 650 * 520 mm (60-120 kW)
1,850 * 650 * 630 mm (120-180 kW)
1,850 * 650 * 630 mm (160-240 kW)
1,880 * 795 * 820 mm (240-400 kW)
excl. cable management
Weight
170-215kg
215-260kg
220-265kg
approx 430 kg
Charging cable length
5 meters, other options
Operating temperature
-30 oC to 75 oC.  Linear derating:
Above 55 oC for models with 30 kW rectifiers
Above 45 oC for models with 40 kW rectifiers
Certification
Safety
IEC 61851-1; IEC 61851-21-2; IEC 61851-23; IEC 61851-24; IEC 62196-1; IEC 62196-2; IEC 62196-3; IEC 61000
Vehicly Communication
DIN 70121, ISO15118, CHAdeMO v1.2, GB/T 27930
Other
CE Marked (180 kW, 240 kW & 400 kW frame sizes)
ARAI (AIS 138 Part 2)
60kW
120kW
180kW
240kW
Charger performance
Harmony Direct
60kW
28 min
Mini Cooper SE
Small car
32.6 kWh
54 min
Kia EV 6
Large car
51.1 kWh
1.5 hours
BMW xDrive 50
Large SUV
111.5 kWh
5 hours
Proterra 40’ ZX5+
Bus
450 kWh
Charger performance
Harmony Direct
120kW
28 min
Mini Cooper SE
Small car
32.6 kWh
27 min
Kia EV 6
Large car
51.1 kWh
39 min
BMW xDrive 50
Large SUV
111.5 kWh
2.5 hours
Proterra 40’ ZX5+
Bus
450 kWh
Charger performance
Harmony Direct
180kW
28 min
Mini Cooper SE
Small car
32.6 kWh
18 min
Kia EV 6
Large car
51.1 kWh
26 min
BMW xDrive 50
Large SUV
111.5 kWh
2 hours
Proterra 40’ ZX5+
Bus
450 kWh
Charger performance
Harmony Direct
240kW
28 min
Mini Cooper SE
Small car
32.6 kWh
14 min
Kia EV 6
Large car
51.1 kWh
24 min
BMW xDrive 50
Large SUV
111.5 kWh
2 hours
Proterra 40’ ZX5+
Bus
450 kWh
Harmony Wall
1-hour charge = 150km*
Max power = 30kw
Commercial DC
Calculations are appromixations based on the average consumption per 100km. Actual consumption depends on the vehicle, battery size, and driving conditions.
1-hour charge = 150km*
Max power = 30kw
Commercial DC
Harmony Wall

Compact wall mount DC charger

Practical and easily-deployable charger suitable for all commercial and public EV charging locations.

30 kW charger with 100A output
Lightweight and compact for easy transportation and installation
Easily mountable on a wall or pedestal
Talk to an expert
Download brochure
Key features
CCS2, CHAdeMO, GB/T, & 22 kW AC Type 2 outputs
>95% energy efficiency
Intuitive user experience
OCPP 1.6J remote management
High DC current over wide voltage range for faster charging
7” touchscreen user interface
Authentication methods: RFID, QR code, plug & charge, mobile app
IP54 rating water resistant
Customizable corporate branding
Very low stand-by power
Fully operable up to 55°C
Zero power derating
Adjustable power output
Configurable to one or two guns
Key technical specifications
Charger output
Charging mode
4
Output voltage
200 - 1,000 Vdc
Outlet 1 (CCS / GBT / CHAdeMO)
100 A
Outlet 2 (opt - CCS / GBT / CHAdeMO)
100 A
Mains input
Input supply (nominal)
380/400/415 Vac 50/60 Hz
AC current, Power rating
46 A, 33 kVA @ 400 Vac
Protection & safety
Surge, Over current, Under/over voltage, Over temperature
Yes
User interface & comms
Display
7” TFT LCD touch
User authentication by RFID / mobile app / OTP / QR code
Yes
Energy metering (MID)
Option (AC)
Network connectivity
Ethernet / 4G (option)
Communication protocol - OCPP v1.6j (JSON)
Yes
Mechanical
Dimension (H*W*D)
590 * 610 * 270 mm (excluding pedestal)
Weight
80 kg approx. (excluding pedestal)
Charging cable length
5 meters, 7 meters optional
Operating temperature
-30 °C to 75 °C (linear derating above 55 °C)
Certification
Safety
IEC 61851-1; IEC 61851-21-2; IEC 61851-23; IEC 61851-24; IEC 62196-1; IEC 62196-2; IEC 62196-3; IEC 61000
Vehicle Communication
DIN 70121, ISO15118, CHAdeMO v1.2, GB/T 27930
Other
CE Marked (LVD; EMCD, RED, ROHS); ARAI (AIS 138 Part 2)
Charger performance
Harmony Wall
30 KW
45 min
Mini Cooper SE
Small car
32.6 kWh
2 hours
Kia EV 6
Large car
51.1 kWh
2.5 hours
BMW xDrive 50
Large SUV
111.5 kWh
10.5 hours
Proterra 40’ ZX5+
Bus
450 kWh
Harmony Bharat
1-hour charge = 90km*
Max power = 30kw
Commercial DC
Calculations are appromixations based on the average consumption per 100km. Actual consumption depends on the vehicle, battery size, and driving conditions.
1-hour charge = 90 km*
Max power = 30kw
Commercial DC
Harmony Bharat

DC charger for low-voltage EVs

Ideal charger for lightweight vehicles with up to 100 VDC battery voltage. Also supports high-current outputs of up to 200A for fast charging.

Bharat standard DC-001 compliant
Charges up to 2 vehicles at a time
Operable in extreme environmental conditions
Talk to an expert
Download brochure
Key features
Wide output voltage from 40V-100V for charging any vehicle type
Modular power configuration
Intuitive user experience
OCPP 1.6J remote management
>95% energy efficiency
7” touchscreen user interface
RFID user authentication
IP54 rating water resistant
Key technical specifications
Charger output
Charging mode
4
Output voltage
40-100 Vdc
Outlet 1
200 A GB/T
Outlet 2 (option)
200 A GB/T
Mains input
Input supply (nominal)
380/400/415 Vac 50/60 Hz
AC current, Power rating
23.5A, 16.2kVA (15kW)
47A, 32.4kVA (30kW)
Protection & safety
Surge, Over current, Under/over voltage, over temperature
Yes
User interface & comms
Display
7” TFT LCD touch
User authentication by RFID / mobile app / OTP / QR code
Yes
Energy metering (MID)
Option
Network connectivity
Ethernet / 4G (option)
Communication protocol - OCPP v1.6j (JSON)
Yes
Mechanical
Dimension (H*W*D)
1,600 * 500 * 348 mm
Weight
<200 kg
Charging cable length
5 meters
Operating temperature
-20 °C to 55 °C
Certification
Approval Type
BEVC-DC001
Vehicle Communication
ARAI AIS-138 (part 2)
Other
GB/T 20234.3
Charger performance
Harmony Bharat
30 KW
45 min
Mini Cooper SE
Small car
32.6 kWh
2 hours
Kia EV 6
Large car
51.1 kWh
2.5 hours
BMW xDrive 50
Large SUV
111.5 kWh
10.5 hours
Proterra 40’ ZX5+
Bus
450 kWh
Spin Pro
1-hour charge = 120km*
Max power = 22kw
Residential AC
Calculations are appromixations based on the average consumption per 100km. Actual consumption depends on the vehicle, battery size, and driving conditions.
1-hour charge = 120 km*
Max power = 22kw
Residential AC

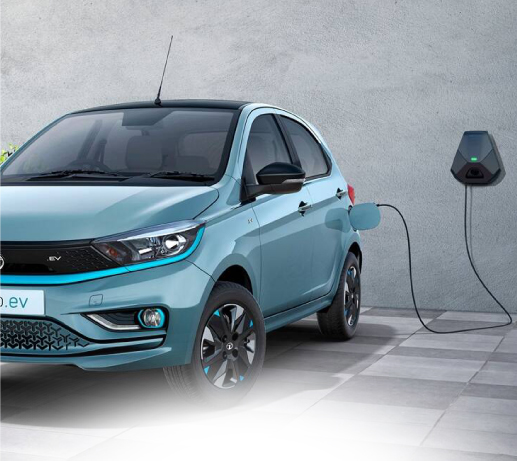

Spin Pro

An unmatched AC charging experience

Maximum functionality meets aesthetic design, with no compromise to ease of use.

Dynamic load management and sharing
Operable at full power in extreme heat up to 55°C
Integrated MID (billing standard) meter option
Talk to an expert
Download brochure
Key features
Advanced charge scheduling
IP54 rating water resistant
Type 2 plug
Integrated 6mA DC + 30 mA AC ground fault protection RCD
Charge status display
Tidy built-in cable and gun stowage
WiFi and 4G for remote control and monitoring
Key technical specifications
Charger output
Charging mode
3
Output voltage
220/230/240 Vac 50/60Hz
380/400/415 Vac 50/60Hz
Outlet 1
AC Type-2 (7.4kW)
AC Type-2 (11kW / 22kW)
Mains input
Input supply (nominal)
220/230/240 Vac 50/60Hz
380/400/415 Vac 50/60Hz
AC current, Power rating
32A, 7.4kVA16A
11kVA / 32A, 22kVA
Protection & safety
Surge, Over current, Under/over voltage, Over temperature
Yes
User interface & comms
Display
LED pro-cluster display
User Authentication by RFID / mobile app / OTP / QR code
Yes
Energy metering (MID)
Option
Network connectivity
WIFI / Ethernet / 4G
Communication protocol - OCPP v1.6j (JSON)
Yes
Mechanical
Dimension (H*W*D)
390 * 190 * 135 mm (excluding pedestal)
Weight
4 kg approx.
Charging cable length
5 meters or socket
Operating temperature
-30 °C to 60 °C
Certification
Safety
IEC 61851-1; IEC 61851-21-2; IEC 61851-23; IEC 61851-24; IEC 62196-1; IEC 62196-2; IEC 62196-3; IEC 61000
Other
CE Marked (LVD; EMCD, RED, ROHS)
Charger performance
Spin Pro
22 KW
2 hours
Mini Cooper SE
Small car
32.6 kWh
5 hours
Kia EV 6
Large car
51.1 kWh
7 hours
BMW xDrive 50
Large SUV
111.5 kWh
N/A
Proterra 40’ ZX5+
Bus
450 kWh
Powerful solutions that make business sense
Heavy duty vehicles

Power your commercial vehicles with the heavy duty electric charging they require

Heavy duty vehicles

Enjoy energy efficiency gains and high operational uptimes by electrifying your fleet of heavy duty vehicles with our industrial charging solutions

Fleets

Maximize your fleet uptime with scalable and cost-effective fleet electrification

Fleets

Fleet vehicles only earn you money while they’re on the road. We help ensure your vehicles are charged and ready for work whenever and wherever they’re needed

CPOs

Guarantee customers dependability while enjoying seamless backend compatibility

CPOs

End-to-end management and control over the charging process and experience. Pair your chargers with ChargeX or integrate with another charger management system

Case study

Exicom empowering residential EV charging Pan India

Read full case
Case study

Exicom powers Mercedes-Benz dealerships with high-performance EV chargers in India

Read full case
Case study

Exicom and Kia Motors transform charging experience across 12 Cities

Read full case
Case study

Powering Premium Auto Brands in the Philippines

Read full case
Case study

Exicom Chargers Empower Mercedes-Benz EV Owners

Read full case
On-call help

Service support

Got questions about our products or concerns about your setup? Whatever you may need, we’re here to help.

ChargeX

Charger management
software (CMS)

A cloud-based CMS platform for anyone who wants to deploy, manage, and grow their EV charging network.

Frequent questions

Which vehicle types can the Harmony DC charger support?

Our Harmony Direct chargers support vehicles that use batteries from 200-1000 VDC, including cars, buses, trucks, electric motorbikes, and other special vehicles. The chargers are compatible with vehicles that use CCS-2, CHAdeMO, and GB/T sockets.

What gun type combinations are supported?

Single gun: CCS-2, CHAdeMO, or GBT

Double gun: a choice of any two from CCS-2, CHAdeMO, and GBT. Two of the same type are possible.

Triple gun: Type 2 AC plus a choice of any two from CCS-2, CHAdeMO, and GBT. Two of the same type are possible.

What Charging Management Software (CMS) connectivity is provided?

When enabled, all chargers can connect to a OCPP 1.6J-compatible backend Charging Management Software for remote monitoring and control. Our Harmony DC chargers can connect via Ethernet (RJ45) and 4G modem, while our Spin Pro AC chargers can connect via WiFi (2.4 GHz IEEE 802.11), 4G modem, and Bluetooth.

What uptime can I expect from the chargers?

Our Harmony DC chargers are built to withstand extremely harsh electrical and environmental conditions through carefully crafted quality components and heat management. Because of this, our chargers have demonstrated over 99.9% uptime (time the charger is running versus being under maintenance). With proper maintenance, the chargers’ life expectancy is >12 years.

Can the charger’s power capability be upgraded?

Thanks to their modularity, our DC chargers can be deployed with a low power capability and later upgraded as needed. This helps lower initial deployment costs, and is useful if high power is not immediately required but flexibility to upgrade later is desired.

For example, the 120 kW Harmony Direct can accommodate up to four 30 kW power modules, but could be initially deployed with only 60kW capability via two modules. The charger can then be upgraded to its maximum power capability when necessary by simply adding the extra power modules.

Let’s electrify your operations, together

Requirements check

Tell us your charging needs, plus any specifications or limitations

Solution proposal

We recommend a setup that’s tailored to your needs

Technical inspection

Pre-installation checks on location, capacity, and wiring

Installation and support

Expert installation and ongoing support assure trouble-free use

1
2
3
4
1
Requirements check

Tell us your charging needs, plus any specifications or limitations

2
Solution proposal

We recommend a setup that’s tailored to your needs

3
Technical inspection

Pre-installation checks on location, capacity, and wiring

4
Installation and support

Expert installation and ongoing support assure trouble-free use

Talk to an expert

Plug into tomorrow

Charging solutions
Home ChargingBusiness SolutionsChargeXSpin Control app
Industries
FleetsWorkplaceResidentialCPOsRetail & hospitalityHeavy duty vehicles
Company
About usPartnersContact usHome supportBusiness support
Exicom © 2024. All rights reserved.
Privacy Policy
We use cookies to make your experience on our website better. By clicking on “Accept All”, you are agreeing for cookies to be used. More information.
SettingsReject allAccept all
